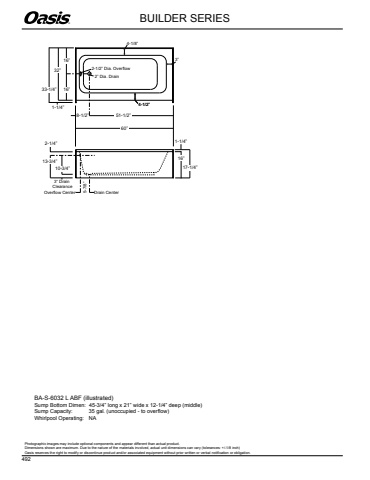

4-1/2%u201d4-1/8%u201d2%u201d Dia. Drain2-1/2%u201d Dia. Overflow3%u201c Drain ClearanceOverflow Center Drain Center1-1/4%u201d1-1/4%u201d60%u201d8-1/2%u201d 22-3/4%u201d 51-1/2%u201d16%u201d32%u201d33-1/4%u201d2-1/4%u201d10-3/4%u201d13-3/4%u201d17-1/4%u201d16%u201d5-7/8%u201d16%u201d4-1/2%u201d3%u201dBA-S-6032 L ABF (illustrated)Sump Bottom Dimen: 45-3/4%u201d long x 21%u201d wide x 12-1/4%u201d deep (middle)Sump Capacity: 35 gal. (unoccupied - to overflow)Whirlpool Operating: NA%u00ae BUILDER SERIES492Photographic images may include optional components and appear different than actual product. Dimensions shown are maximum. Due to the nature of the materials involved, actual unit dimensions can vary (tolerances: +/-1/8 inch)Oasis reserves the right to modify or discontinue product and/or associated equipment without prior written or verbal notification or obligation.
