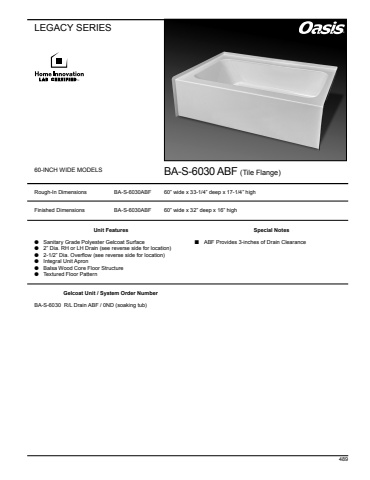

LEGACY SERIESRough-In Dimensions BA-S-6030ABFFinished Dimensions BA-S-6030ABF60%u201d wide x 33-1/4%u201d deep x 17-1/4%u201d high60%u201d wide x 32%u201d deep x 16%u201d high60-INCH WIDE MODELSSpecial Notesn ABF Provides 3-inches of Drain ClearanceUnit Featuresl Sanitary Grade Polyester Gelcoat Surfacel 2%u201d Dia. RH or LH Drain (see reverse side for location)l%u0009 2-1/2%u201d Dia. Overflow (see reverse side for location)l Integral Unit Apronl Balsa Wood Core Floor Structurel Textured Floor PatternBA-S-6030 ABF (Tile Flange)Gelcoat Unit / System Order NumberBA-S-6030 R/L Drain ABF / 0ND (soaking tub) %u00ae489
