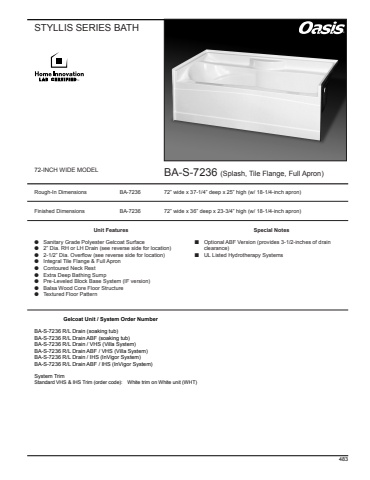

Rough-In Dimensions BA-7236 Finished Dimensions BA-723672%u201d wide x 37-1/4%u201d deep x 25%u201d high (w/ 18-1/4-inch apron)72%u201d wide x 36%u201d deep x 23-3/4%u201d high (w/ 18-1/4-inch apron)STYLLIS SERIES BATH72-INCH WIDE MODELSpecial Notesn Optional ABF Version (provides 3-1/2-inches of drain clearance)n UL Listed Hydrotherapy SystemsUnit Featuresl Sanitary Grade Polyester Gelcoat Surfacel 2%u201d Dia. RH or LH Drain (see reverse side for location)l%u0009 2-1/2%u201d Dia. Overflow (see reverse side for location)l Integral Tile Flange & Full Apronl Contoured Neck Restl Extra Deep Bathing Sumpl Pre-Leveled Block Base System (IF version)l Balsa Wood Core Floor Structurel Textured Floor PatternBA-S-7236 (Splash, Tile Flange, Full Apron)Gelcoat Unit / System Order NumberBA-S-7236 R/L Drain (soaking tub)BA-S-7236 R/L Drain ABF (soaking tub)BA-S-7236 R/L Drain / VHS (Villa System)BA-S-7236 R/L Drain ABF / VHS (Villa System)BA-S-7236 R/L Drain / IHS (InVigor System)BA-S-7236 R/L Drain ABF / IHS (InVigor System)System TrimStandard VHS & IHS Trim (order code): White trim on White unit (WHT)%u00ae483
