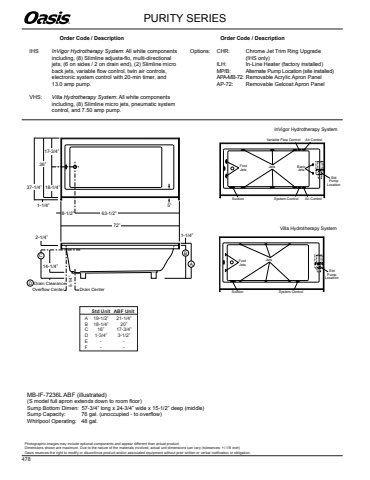

Foot JetsJetsSuctionStdPumpLocationSystem ControlBackJetsFootJetsSuctionStdPumpLocationSystem Control Air ControlVariable Flow Control Air ControlJetsD Drain Clearance1-1/4%u201dOverflow Center2-1/4%u201d14-1/4%u201dDrain Center5-1/4%u201d72%u201d8-1/2%u201d 22-3/4%u201d 63-1/2%u201d1-1/4%u201d 5%u201d36%u201d37-1/4%u201d17-3/4%u201d18-1/4%u201dAB CMB-IF-7236L ABF (illustrated)(S model full apron extends down to room floor)Sump Bottom Dimen: 57-3/4%u201d long x 24-3/4%u201d wide x 15-1/2%u201d deep (middle)Sump Capacity: 76 gal. (unoccupied - to overflow)Whirlpool Operating: 48 gal.PURITY SERIESInVigor Hydrotherapy SystemVilla Hydrotherapy System Order Code / DescriptionIHS InVigor Hydrotherapy System: All white components including, (8) Slimline adjusta-flo, multi-directionaljets, (6 on sides / 2 on drain end), (2) Slimline micro back jets, variable flow control, twin air controls,electronic system control with 20-min timer, and 13.0 amp pump. VHS: Villa Hydrotherapy System: All white components including, (8) Slimline micro jets, pneumatic system control, and 7.50 amp pump. Order Code / DescriptionOptions: CHR: Chrome Jet Trim Ring Upgrade (IHS only) ILH: In-Line Heater (factory installed)MP/B: Alternate Pump Location (site installed)APA-MB-72: Removable Acrylic Apron PanelAP-72: Removable Gelcoat Apron PanelStd Unit ABF UnitA 19-1/2%u201d 21-1/4%u201dB 18-1/4%u201d 20%u201dC 16%u201d 17-3/4%u201dD 1-3/4%u201d 3-1/2%u201dE - -F - -%u00ae 478Photographic images may include optional components and appear different than actual product. Dimensions shown are maximum. Due to the nature of the materials involved, actual unit dimensions can vary (tolerances: +/-1/8 inch)Oasis reserves the right to modify or discontinue product and/or associated equipment without prior written or verbal notification or obligation.
