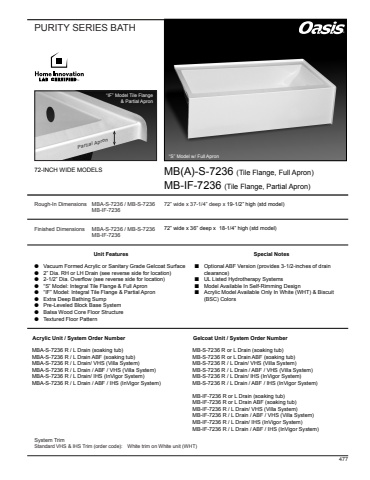

PURITY SERIES BATHRough-In Dimensions MBA-S-7236 / MB-S-7236MB-IF-7236Finished Dimensions MBA-S-7236 / MB-S-7236MB-IF-723672%u201d wide x 37-1/4%u201d deep x 19-1/2%u201d high (std model)72%u201d wide x 36%u201d deep x 18-1/4%u201d high (std model)72-INCH WIDE MODELSSpecial Notesn Optional ABF Version (provides 3-1/2-inches of drain clearance)n UL Listed Hydrotherapy Systemsn Model Available In Self-Rimming Designn Acrylic Model Available Only In White (WHT) & Biscuit (BSC) ColorsUnit Featuresl Vacuum Formed Acrylic or Sanitary Grade Gelcoat Surfacel 2%u201d Dia. RH or LH Drain (see reverse side for location)l%u0009 2-1/2%u201d Dia. Overflow (see reverse side for location)l %u201cS%u201d Model: Integral Tile Flange & Full Apronl %u201cIF%u201d Model: Integral Tile Flange & Partial Apronl Extra Deep Bathing Sumpl Pre-Leveled Block Base Systeml Balsa Wood Core Floor Structurel Textured Floor PatternMB(A)-S-7236 (Tile Flange, Full Apron)MB-IF-7236 (Tile Flange, Partial Apron)Acrylic Unit / System Order NumberMBA-S-7236 R / L Drain (soaking tub)MBA-S-7236 R / L Drain ABF (soaking tub)MBA-S-7236 R / L Drain/ VHS (Villa System)MBA-S-7236 R / L Drain / ABF / VHS (Villa System)MBA-S-7236 R / L Drain/ IHS (InVigor System)MBA-S-7236 R / L Drain / ABF / IHS (InVigor System)Gelcoat Unit / System Order NumberMB-S-7236 R or L Drain (soaking tub)MB-S-7236 R or L Drain ABF (soaking tub)MB-S-7236 R / L Drain/ VHS (Villa System)MB-S-7236 R / L Drain / ABF / VHS (Villa System)MB-S-7236 R / L Drain/ IHS (InVigor System)MB-S-7236 R / L Drain / ABF / IHS (InVigor System)MB-IF-7236 R or L Drain (soaking tub)MB-IF-7236 R or L Drain ABF (soaking tub)MB-IF-7236 R / L Drain/ VHS (Villa System)MB-IF-7236 R / L Drain / ABF / VHS (Villa System)MB-IF-7236 R / L Drain/ IHS (InVigor System)MB-IF-7236 R / L Drain / ABF / IHS (InVigor System)%u201cS%u201d Model w/ Full Apron%u201cIF%u201d Model Tile Flange& Partial ApronPartial ApronSystem TrimStandard VHS & IHS Trim (order code): White trim on White unit (WHT)%u00ae477
