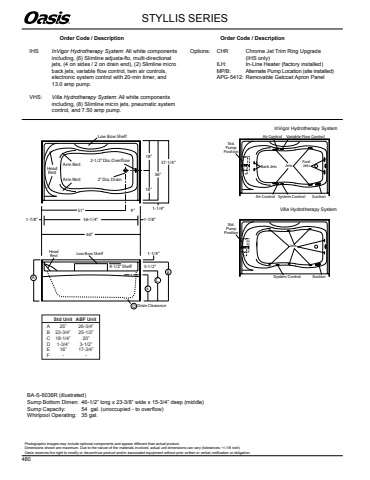

1-7/8%u201d36%u201d37-1/4%u201d1-1/4%u201d1-1/4%u201d60%u201d1-7/8%u201d 56-1/4%u201d51%u201d 9%u201d2-1/2%u201d Dia. Over%u0009ow2%u201d Dia. DrainHeadRestArm RestArm RestLow Bow ShelfHead Low Bow Shelf Rest18%u201d18%u201d4-1/2%u201d Shelf 5-1/2%u201dD Drain ClearanceBAECStd Unit ABF UnitA 25%u201d 26-3/4%u201dB 23-3/4%u201d 25-1/2%u201dC 18-1/4%u201d 20%u201dD 1-3/4%u201d 3-1/2%u201dE 16%u201d 17-3/4%u201dF - -JetsAir Control System ControlAir ControlStd.PumpPositionSuctionVariable Flow ControlBack JetsFoot JetsInVigor Hydrotherapy SystemSTYLLIS SERIESBA-S-6036R (illustrated)Sump Bottom Dimen: 46-1/2%u201d long x 23-3/8%u201d wide x 15-3/4%u201d deep (middle)Sump Capacity:%u0009 54%u0009%u0009gal. (unoccupied - to overflow)Whirlpool Operating: 35 gal.Villa Hydrotherapy SystemSystem ControlStd.PumpPositionSuctionJets Order Code / DescriptionIHS InVigor Hydrotherapy System: All white components including, (6) Slimline adjusta-flo, multi-directionaljets, (4 on sides / 2 on drain end), (2) Slimline micro back jets, variable flow control, twin air controls,electronic system control with 20-min timer, and 13.0 amp pump. VHS: Villa Hydrotherapy System: All white components including, (8) Slimline micro jets, pneumatic system control, and 7.50 amp pump. Order Code / DescriptionOptions: CHR Chrome Jet Trim Ring Upgrade (IHS only)ILH: In-Line Heater (factory installed)MP/B: Alternate Pump Location (site installed)APG-5412: Removable Gelcoat Apron Panel%u00ae 480Photographic images may include optional components and appear different than actual product. Dimensions shown are maximum. Due to the nature of the materials involved, actual unit dimensions can vary (tolerances: +/-1/8 inch)Oasis reserves the right to modify or discontinue product and/or associated equipment without prior written or verbal notification or obligation.
