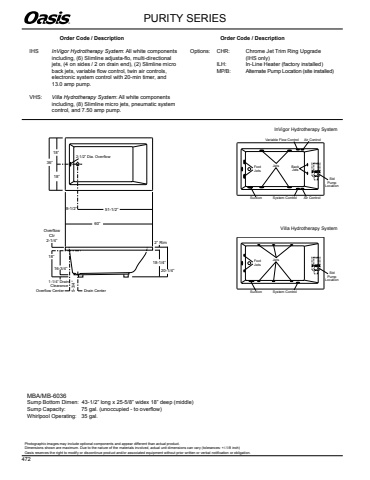

8-1/2%u201d 51-1/2%u201d60%u201d18%u201d18%u201d36%u201d18%u201cOverflowCtr2-1/4%u201d2-1/2%u201d Dia. Overflow1-1/4%u201c Drain ClearanceOverflow Center Drain Center2%u201d Rim20-1/4%u201d 16-3/4%u201d18-1/4%u201d5-3/4%u201dJets FootJetsSuctionStdPumpLocationSystem ControlBackJetsJets FootJetsSuctionStdPumpLocationSystem Control Air ControlVariable Flow Control Air ControlMBA/MB-6036Sump Bottom Dimen: 43-1/2%u201d long x 25-5/8%u201d widex 18%u201d deep (middle)Sump Capacity:%u0009 75 gal. (unoccupied - to overflow)Whirlpool Operating: 35 gal.PURITY SERIESInVigor Hydrotherapy SystemVilla Hydrotherapy System Order Code / DescriptionIHS InVigor Hydrotherapy System: All white components including, (6) Slimline adjusta-flo, multi-directionaljets, (4 on sides / 2 on drain end), (2) Slimline micro back jets, variable flow control, twin air controls,electronic system control with 20-min timer, and 13.0 amp pump. VHS: Villa Hydrotherapy System: All white components including, (8) Slimline micro jets, pneumatic system control, and 7.50 amp pump. Order Code / DescriptionOptions: CHR: Chrome Jet Trim Ring Upgrade (IHS only) ILH: In-Line Heater (factory installed)MP/B: Alternate Pump Location (site installed) %u00ae 472Photographic images may include optional components and appear different than actual product. Dimensions shown are maximum. Due to the nature of the materials involved, actual unit dimensions can vary (tolerances: +/-1/8 inch)Oasis reserves the right to modify or discontinue product and/or associated equipment without prior written or verbal notification or obligation.
