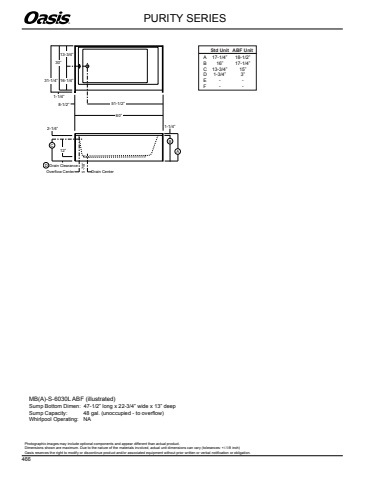

Overflow Center Drain Center1-1/4%u201d1-1/4%u201d60%u201d8-1/2%u201d 22-3/4%u201d 51-1/2%u201d13-3/4%u201d30%u201d31-1/4%u201d2-1/4%u201d12%u201d5-7/8%u201d16-1/4%u201dD Drain ClearanceCBAStd Unit ABF UnitA 17-1/4%u201d 18-1/2%u201dB 16%u201d 17-1/4%u201dC 13-3/4%u201d 15%u201dD 1-3/4%u201d 3%u201dE - -F - -MB(A)-S-6030L ABF (illustrated)Sump Bottom Dimen: 47-1/2%u201d long x 22-3/4%u201d wide x 13%u201d deepSump Capacity:%u0009 48 gal. (unoccupied - to overflow)Whirlpool Operating: NA%u00ae PURITY SERIES466Photographic images may include optional components and appear different than actual product. Dimensions shown are maximum. Due to the nature of the materials involved, actual unit dimensions can vary (tolerances: +/-1/8 inch)Oasis reserves the right to modify or discontinue product and/or associated equipment without prior written or verbal notification or obligation.
