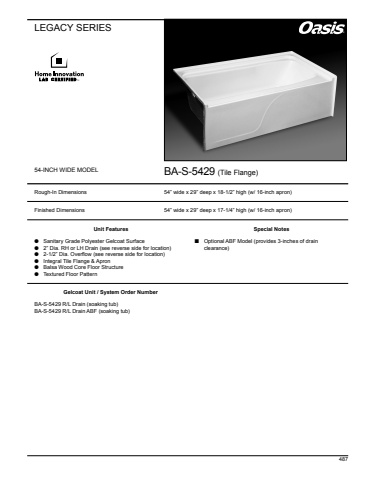

Gelcoat Unit / System Order NumberBA-S-5429 R/L Drain (soaking tub)BA-S-5429 R/L Drain ABF (soaking tub)LEGACY SERIESRough-In Dimensions Finished Dimensions 54%u201d wide x 29%u201d deep x 18-1/2%u201d high (w/ 16-inch apron)54%u201d wide x 29%u201d deep x 17-1/4%u201d high (w/ 16-inch apron)54-INCH WIDE MODELSpecial Notesn Optional ABF Model (provides 3-inches of drain clearance) Unit Featuresl Sanitary Grade Polyester Gelcoat Surfacel 2%u201d Dia. RH or LH Drain (see reverse side for location)l%u0009 2-1/2%u201d Dia. Overflow (see reverse side for location)l Integral Tile Flange & Apronl Balsa Wood Core Floor Structurel Textured Floor PatternBA-S-5429 (Tile Flange)%u00ae487
