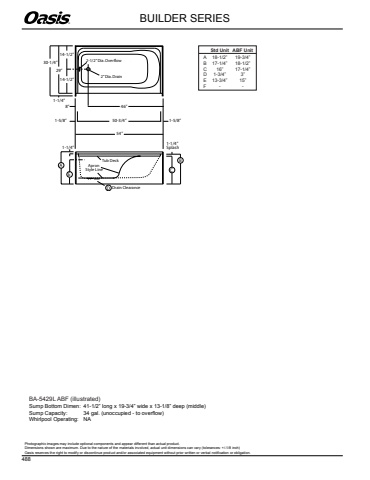

Std Unit ABF UnitA 18-1/2%u201d 19-3/4%u201dB 17-1/4%u201d 18-1/2%u201dC 16%u201d 17-1/4%u201dD 1-3/4%u201d 3%u201dE 13-3/4%u201d 15%u201dF - -BA-5429L ABF (illustrated)Sump Bottom Dimen: 41-1/2%u201d long x 19-3/4%u201d wide x 13-1/8%u201d deep (middle)Sump Capacity:%u0009 34 gal. (unoccupied - to overflow)Whirlpool Operating: NABUILDER SERIES54%u201d1-5/8%u201d29%u201d30-1/4%u201d1-1/4%u201d1-5/8%u201d 50-3/4%u201d14-1/2%u201d14-1/2%u201d8%u201dApron Style Line1-1/4%u201d1-1/4%u201d Splash46%u201dTub Deck2%u201d Dia. Drain2-1/2%u201d Dia.OverflowD Drain ClearanceBAEC%u00ae 488Photographic images may include optional components and appear different than actual product. Dimensions shown are maximum. Due to the nature of the materials involved, actual unit dimensions can vary (tolerances: +/-1/8 inch)Oasis reserves the right to modify or discontinue product and/or associated equipment without prior written or verbal notification or obligation.
