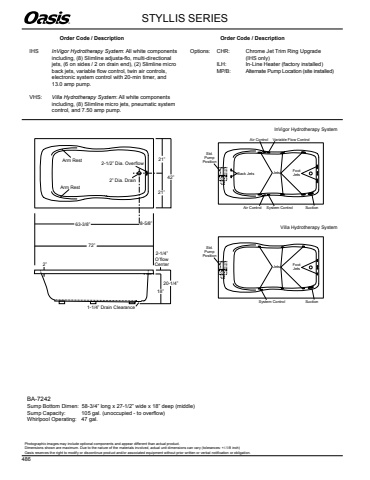

JetsSystem ControlStd.PumpPositionSuctionFoot JetsJetsAir Control System ControlAir ControlStd.PumpPositionSuctionVariable Flow ControlBack Jets Foot Jets 42%u201d72%u201d63-3/8%u201d 8-5/8%u201d2-1/2%u201d Dia. Overflow2%u201d Dia. DrainArm RestArm Rest 21%u201d21%u201d20-1/4%u201d 18%u201d 1-1/4%u201d Drain Clearance2%u201d 2-1/4%u201dO%u2019flowCenterBA-7242Sump Bottom Dimen: 58-3/4%u201d long x 27-1/2%u201d wide x 18%u201d deep (middle)Sump Capacity:%u0009 105 gal. (unoccupied - to overflow)Whirlpool Operating: 47 gal.STYLLIS SERIESInVigor Hydrotherapy SystemVilla Hydrotherapy System Order Code / DescriptionIHS InVigor Hydrotherapy System: All white components including, (8) Slimline adjusta-flo, multi-directionaljets, (6 on sides / 2 on drain end), (2) Slimline micro back jets, variable flow control, twin air controls,electronic system control with 20-min timer, and 13.0 amp pump. VHS: Villa Hydrotherapy System: All white components including, (8) Slimline micro jets, pneumatic system control, and 7.50 amp pump. Order Code / DescriptionOptions: CHR: Chrome Jet Trim Ring Upgrade (IHS only) ILH: In-Line Heater (factory installed)MP/B: Alternate Pump Location (site installed)%u00ae 486Photographic images may include optional components and appear different than actual product. Dimensions shown are maximum. Due to the nature of the materials involved, actual unit dimensions can vary (tolerances: +/-1/8 inch)Oasis reserves the right to modify or discontinue product and/or associated equipment without prior written or verbal notification or obligation.
