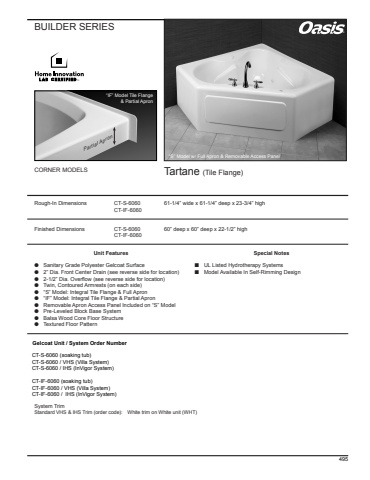

BUILDER SERIESRough-In Dimensions CT-S-6060CT-IF-6060Finished Dimensions CT-S-6060CT-IF-606061-1/4%u201d wide x 61-1/4%u201d deep x 23-3/4%u201d high60%u201d deep x 60%u201d deep x 22-1/2%u201d highCORNER MODELSSpecial Notesn UL Listed Hydrotherapy Systemsn Model Available In Self-Rimming DesignUnit Featuresl Sanitary Grade Polyester Gelcoat Surfacel 2%u201d Dia. Front Center Drain (see reverse side for location)l%u0009 2-1/2%u201d Dia. Overflow (see reverse side for location)l Twin, Contoured Armrests (on each side)l %u201cS%u201d Model: Integral Tile Flange & Full Apronl %u201cIF%u201d Model: Integral Tile Flange & Partial Apronl Removable Apron Access Panel Included on %u201cS%u201d Modell Pre-Leveled Block Base Systeml Balsa Wood Core Floor Structurel Textured Floor PatternTartane (Tile Flange)System TrimStandard VHS & IHS Trim (order code): White trim on White unit (WHT)%u201cS%u201d Model w/ Full Apron & Removable Access Panel%u201cIF%u201d Model Tile Flange& Partial ApronPartial ApronGelcoat Unit / System Order NumberCT-S-6060 (soaking tub)CT-S-6060 / VHS (Villa System)CT-S-6060 / IHS (InVigor System)CT-IF-6060 (soaking tub)CT-IF-6060 / VHS (Villa System)CT-IF-6060 / IHS (InVigor System)%u00ae495
