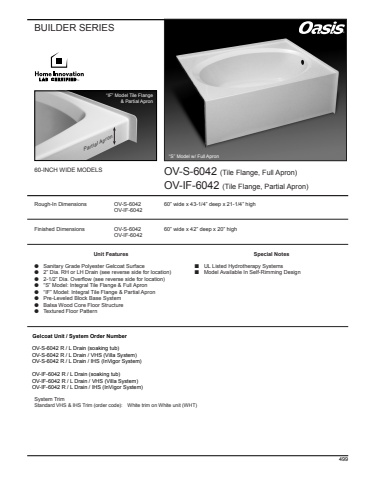

System TrimStandard VHS & IHS Trim (order code): White trim on White unit (WHT)BUILDER SERIESRough-In Dimensions OV-S-6042OV-IF-6042Finished Dimensions OV-S-6042OV-IF-604260%u201d wide x 43-1/4%u201d deep x 21-1/4%u201d high60%u201d wide x 42%u201d deep x 20%u201d high60-INCH WIDE MODELSSpecial Notesn UL Listed Hydrotherapy Systemsn Model Available In Self-Rimming DesignUnit Featuresl Sanitary Grade Polyester Gelcoat Surfacel 2%u201d Dia. RH or LH Drain (see reverse side for location)l%u0009 2-1/2%u201d Dia. Overflow (see reverse side for location)l %u201cS%u201d Model: Integral Tile Flange & Full Apronl %u201cIF%u201d Model: Integral Tile Flange & Partial Apronl Pre-Leveled Block Base Systeml Balsa Wood Core Floor Structurel Textured Floor PatternOV-S-6042 (Tile Flange, Full Apron)OV-IF-6042 (Tile Flange, Partial Apron)%u201cS%u201d Model w/ Full Apron%u201cIF%u201d Model Tile Flange& Partial ApronPartial ApronGelcoat Unit / System Order NumberOV-S-6042 R / L Drain (soaking tub)OV-S-6042 R / L Drain / VHS (Villa System)OV-S-6042 R / L Drain / IHS (InVigor System)OV-IF-6042 R / L Drain (soaking tub)OV-IF-6042 R / L Drain / VHS (Villa System)OV-IF-6042 R / L Drain / IHS (InVigor System)%u00ae499
