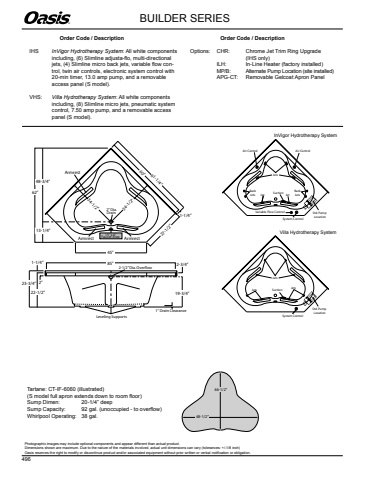

45%u201d2%u201d Dia.Drain2-1/2%u201d Dia.Overflow1%u201c Drain Clearance1-1/4%u201dLeveling Supports62%u201d48-3/4%u201d34-1/2%u201d34-1/2%u201d27-1/2%u201d13-1/4%u201d60%u201d85%u201dArmrestArmrest22-1/2%u201d 19-3/4%u201d2-3/4%u201d2%u201d90%u02da23-3/4%u201d1-1/4%u201d61-1/4%u201dArmrest 15%u201d x 4%u201d Faucet AreaSystem ControlAir ControlJets Suction JetsJetsAir ControlStd. Pump LocationSystem ControlAir ControlJet Suction JetJetsAir ControlStd. Pump LocationVariable Flow ControlBackJetsBackJetsVilla Hydrotherapy SystemInVigor Hydrotherapy System48-1/2%u201dTartane: CT-IF-6060 (illustrated) 46-1/2%u201d(S model full apron extends down to room floor)Sump Dimen: 20-1/4%u201d deepSump Capacity:%u0009 92 gal. (unoccupied - to overflow)Whirlpool Operating: 38 gal.BUILDER SERIES Order Code / DescriptionIHS InVigor Hydrotherapy System: All white components including, (6) Slimline adjusta-flo, multi-directionaljets, (4) Slimline micro back jets, variable flow control, twin air controls, electronic system control with 20-min timer, 13.0 amp pump, and a removable access panel (S model).VHS: Villa Hydrotherapy System: All white components including, (8) Slimline micro jets, pneumatic system control, 7.50 amp pump, and a removable access panel (S model). Order Code / DescriptionOptions: CHR: Chrome Jet Trim Ring Upgrade (IHS only)ILH: In-Line Heater (factory installed)MP/B: Alternate Pump Location (site installed)APG-CT: Removable Gelcoat Apron Panel%u00ae 496Photographic images may include optional components and appear different than actual product. Dimensions shown are maximum. Due to the nature of the materials involved, actual unit dimensions can vary (tolerances: +/-1/8 inch)Oasis reserves the right to modify or discontinue product and/or associated equipment without prior written or verbal notification or obligation.
