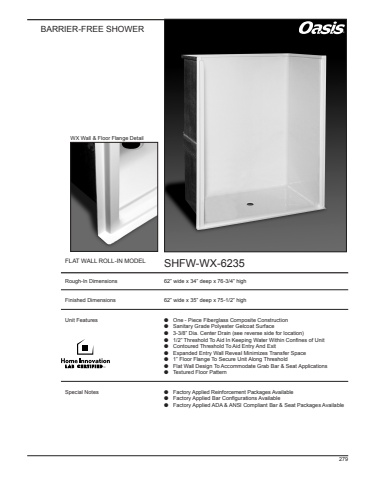

BARRIER-FREE SHOWERFLAT WALL ROLL-IN MODELRough-In DimensionsFinished DimensionsUnit FeaturesSpecial Notes62%u201d wide x 34%u201d deep x 76-3/4%u201d high62%u201d wide x 35%u201d deep x 75-1/2%u201d highl One - Piece Fiberglass Composite Constructionl Sanitary Grade Polyester Gelcoat Surfacel 3-3/8%u201d Dia. Center Drain (see reverse side for location)l%u0009 1/2%u201d Threshold To Aid In Keeping Water Within Confines of Unitl Contoured Threshold To Aid Entry And Exitl Expanded Entry Wall Reveal Minimizes Transfer Spacel 1%u201d Floor Flange To Secure Unit Along Thresholdl Flat Wall Design To Accommodate Grab Bar & Seat Applicationsl Textured Floor Patternl Factory Applied Reinforcement Packages Availablel%u0009 Factory Applied Bar Configurations Availablel Factory Applied ADA & ANSI Compliant Bar & Seat Packages Available SHFW-WX-6235WX Wall & Floor Flange Detail279%u00ae
