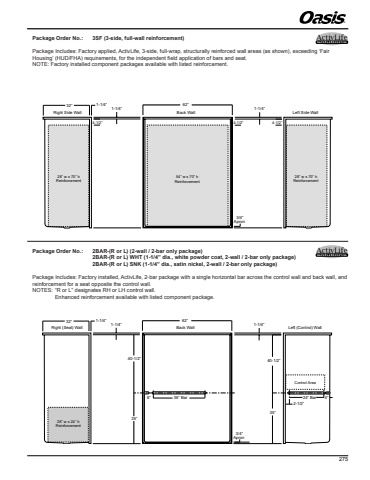

%u00ae Package Order No.:%u0009 3SF (3-side, full-wall reinforcement)Package Includes: Factory applied, ActivLife, 3-side, full-wrap, structurally reinforced wall areas (as shown), exceeding %u2018Fair Housing%u2019 (HUD/FHA) requirements, for the independent field application of bars and seat.NOTE: Factory installed component packages available with listed reinforcement.Package Order No.:%u0009 2BAR-(R or L) (2-wall / 2-bar only package)%u0009 %u0009 2BAR-(R or L) WHT (1-1/4%u201d dia., white powder coat, 2-wall / 2-bar only package)%u0009 %u0009 2BAR-(R or L) SNK (1-1/4%u201d dia., satin nickel, 2-wall / 2-bar only package)Package Includes: Factory installed, ActivLife, 2-bar package with a single horizontal bar across the control wall and back wall, and reinforcement for a seat opposite the control wall.NOTES: %u201cR or L%u201d designates RH or LH control wall.Enhanced reinforcement available with listed component package.ActivLifesolutionsActivLifesolutions Dimension Tolerances+ 0 / -3/8-inchSHMD-6232(5/17/11)SHMT-62323SF (3-Side Full Wrap)(12/30/24)4-1/2%u201c54%u201d w x 70%u201d hReinforcement28%u201d w x 70%u201d hReinforcement28%u201d w x 70%u201d hReinforcement4-1/2%u201c 4-1/2%u201cRight Side Wall Left Side Wall1-1/4%u201dBack Wall1-1/4%u201d32%u201d 1-1/4%u201d 62%u201d3/4%u201dApron Dimension Tolerances+ 0 / -3/8-inchSHMT-6232(12/30/24)35%u201d40-1/2%u201dControl Area24%u201d Bar2-1/2%u201d35%u201d40-1/2%u201d6%u201d 36%u201d Bar 4%u201d28%u201d w x 24%u201d hReinforcementRight (Seat) Wall Left (Control) Wall1-1/4%u201dBack Wall1-1/4%u201d32%u201d 1-1/4%u201d 62%u201d3/4%u201dApron 275
