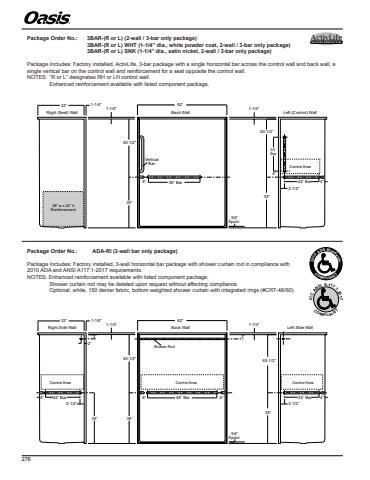

Package Order No.:%u0009 ADA-RI (3-wall bar only package)Package Includes: Factory installed, 3-wall horizontal bar package with shower curtain rod in compliance with 2010 ADA and ANSI A117.1-2017 requirements.NOTES: Enhanced reinforcement available with listed component package.Shower curtain rod may be deleted upon request without affecting compliance.Optional, white, 150 denier fabric, bottom weighted shower curtain with integrated rings (#CRT-48/60).COMPLIANTCI CANSI A-117.1-2017COMPLIANT2010 ADA StandardsPackage Order No.:%u0009 3BAR-(R or L) (2-wall / 3-bar only package)%u0009 %u0009 3BAR-(R or L) WHT (1-1/4%u201d dia., white powder coat, 2-wall / 3-bar only package)%u0009 %u0009 3BAR-(R or L) SNK (1-1/4%u201d dia., satin nickel, 2-wall / 3-bar only package)Package Includes: Factory installed, ActivLife, 3-bar package with a single horizontal bar across the control wall and back wall, a single vertical bar on the control wall and reinforcement for a seat opposite the control wall.NOTES: %u201cR or L%u201d designates RH or LH control wall.Enhanced reinforcement available with listed component package.ActivLifesolutions Dimension Tolerances+ / - 1/8-inchSHMT-6232(12/30/24)35%u201d40-1/2%u201dControl Area24%u201d Bar2-1/2%u201d35%u201d40-1/2%u201d6%u201d 36%u201d Bar 4%u201d28%u201d w x 24%u201d hReinforcementRight (Seat) Wall Left (Control) Wall24%u201dBar4%u201dVerticalBar1-1/4%u201dBack Wall1-1/4%u201d32%u201d 1-1/4%u201d 62%u201d3/4%u201dApron Dimension Tolerances+ 0 / -3/8-inchSHMT-6232(5/17/11)24%u201d Bar2-1/2%u201d4%u201d35%u201d40-1/2%u201dControl Area24%u201d Bar2-1/2%u201d35%u201d40-1/2%u201d3%u201cShower Rod2%u201c3%u201c6%u201d 48%u201d Bar 4%u201dADA-RI ADA Standard Roll-In Shower(2010 ADA & ICC/ANSI A117.1-2017)(12/30/24)6%u201d35%u201dControl Area Control AreaRight Side Wall Left Side Wall1-1/4%u201dBack Wall1-1/4%u201d32%u201d 1-1/4%u201d 62%u201d3/4%u201dApron %u00ae 276
