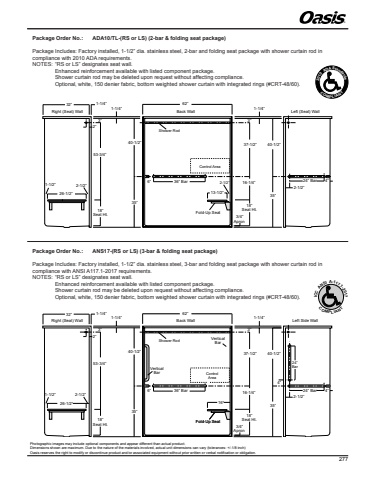

Package Order No.:%u0009 ADA10/TL-(RS or LS) (2-bar & folding seat package)Package Includes: Factory installed, 1-1/2%u201d dia. stainless steel, 2-bar and folding seat package with shower curtain rod in compliance with 2010 ADA requirements.NOTES: %u201cRS or LS%u201d designates seat wall. Enhanced reinforcement available with listed component package.Shower curtain rod may be deleted upon request without affecting compliance.Optional, white, 150 denier fabric, bottom weighted shower curtain with integrated rings (#CRT-48/60).Package Order No.:%u0009 ANS17-(RS or LS) (3-bar & folding seat package)Package Includes: Factory installed, 1-1/2%u201d dia. stainless steel, 3-bar and folding seat package with shower curtain rod in compliance with ANSI A117.1-2017 requirements.NOTES: %u201cRS or LS%u201d designates seat wall. Enhanced reinforcement available with listed component package.Shower curtain rod may be deleted upon request without affecting compliance.Optional, white, 150 denier fabric, bottom weighted shower curtain with integrated rings (#CRT-48/60).COMPLIANT2010 ADA Standards%u00ae Dimension Tolerances+ 0 / -3/8-inchSHMT-6232(12/30/24)35%u201d40-1/2%u201dControl Area24%u201d Bar2-1/2%u201d35%u201d40-1/2%u201d16-1/4%u201d37-1/2%u201d3%u201cShower Rod2%u201c3%u201cFold-Up Seat6%u201d 36%u201d Bar 4%u201d18%u201dSeat Ht.13-1/2%u201d2-1/2%u201d 1-1/2%u201d 2-1/2%u201d26-1/2%u201d18%u201dSeat Ht.53-3/4%u201dRight (Seat) Wall Left (Seat) Wall1-1/4%u201dBack Wall1-1/4%u201d32%u201d 1-1/4%u201d 62%u201d3/4%u201dApron COMPLIANTCI CANSI A-117.1-2017Dimension Tolerances+ / - 1/8-inchSHMD-6232(5/17/11)ControlArea35%u201d40-1/2%u201d24%u201d Bar2-1/2%u201d35%u201d40-1/2%u201d16-1/4%u201d37-1/2%u201d3%u201cShower Rod2%u201c3%u201cFold-Up Seat6%u201d 36%u201d Bar 4%u201d18%u201dSeat Ht.1-1/2%u201d18%u201dSeat Ht.53-3/4%u201dRight (Seat) Wall Left Side Wall24%u201dBar4%u201dVerticalBarVerticalBarSHMT-6232 ANS17-TL RSANSI-2017 Compliant Roll-In Shower(12/30/24 v1.0)Fold-Up Seat16%u201d2-1/2%u201d26-1/2%u201d1-1/4%u201dBack Wall1-1/4%u201d32%u201d 1-1/4%u201d 62%u201d3/4%u201dApron 277Photographic images may include optional components and appear different than actual product. Dimensions shown are maximum. Due to the nature of the materials involved, actual unit dimensions can vary (tolerances: +/-1/8 inch)Oasis reserves the right to modify or discontinue product and/or associated equipment without prior written or verbal notification or obligation.
