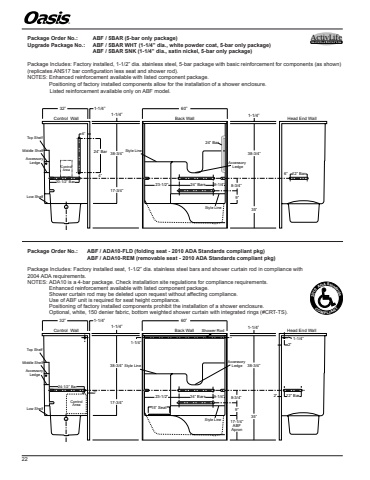

Package Order No.:%u0009 ABF / 5BAR (5-bar only package)Upgrade Package No.:%u0009 ABF / 5BAR WHT (1-1/4%u201d dia., white powder coat, 5-bar only package)%u0009 %u0009 ABF / 5BAR SNK (1-1/4%u201d dia., satin nickel, 5-bar only package)Package Includes: Factory installed, 1-1/2%u201d dia. stainless steel, 5-bar package with basic reinforcement for components (as shown) (replicates ANS17 bar configuration less seat and shower rod).NOTES: Enhanced reinforcement available with listed component package.Positioning of factory installed components allow for the installation of a shower enclosure. Listed reinforcement available only on ABF model.Package Order No.:%u0009 ABF / ADA10-FLD (folding seat - 2010 ADA Standards compliant pkg)%u0009 %u0009 ABF / ADA10-REM (removable seat - 2010 ADA Standards compliant pkg)Package Includes: Factory installed seat, 1-1/2%u201d dia. stainless steel bars and shower curtain rod in compliance with 2004 ADA requirements.NOTES: ADA10 is a 4-bar package. Check installation site regulations for compliance requirements.Enhanced reinforcement available with listed component package.Shower curtain rod may be deleted upon request without affecting compliance.Use of ABF unit is required for seat height compliance.Positioning of factory installed components prohibit the installation of a shower enclosure.Optional, white, 150 denier fabric, bottom weighted shower curtain with integrated rings (#CRT-TS).6%u201d17-3/4%u201d38-3/4%u201d9%u201d23-1/2%u201d 24%u201d Bars 9-1/4%u201d 8-3/4%u201d12%u201d Bar35%u201d38-3/4%u201d6%u201d20-1/2%u201d BarTS-6032R ABF / 5BAR(5/29/24)24%u201d Bar24%u201d Bar4%u201dControlArea1-1/4%u201d60%u201dControl Wall Back Wall Head End Wall1-1/4%u201d32%u201d 1-1/4%u201dTop ShelfMiddle ShelfAccessory LedgeLow ShelfStyle LineStyle LineAccessory LedgeFold-Up SeatControlArea17-1/4%u201dABFApron2%u201d17-3/4%u201d38-3/4%u201d9%u201d8-3/4%u201d1-1/4%u201c23-1/2%u201d 24%u201d Bars 9-1/4%u201d 12%u201d Bar35%u201d38-3/4%u201d2%u201d2%u201c1-1/4%u201cShower Rod24-1/2%u201d Bar15%u201d SeatTS-6032R ABF (ADA94) v2(04/20/11)Folding Seat1-1/4%u201d60%u201dControl Wall Back Wall Head End Wall1-1/4%u201d32%u201d 1-1/4%u201dTop ShelfMiddle ShelfAccessory LedgeLow ShelfStyle LineStyle LineAccessory LedgeActivLifesolutionsCOMPLIANT2010 ADA Standards%u00ae 22
