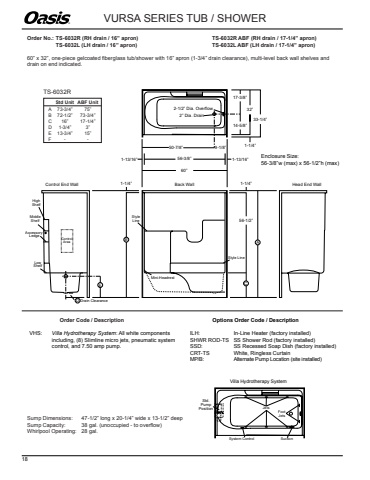

1-13/16%u201d9-1/8%u201d17-3/8%u201d32%u201d33-1/4%u201d1-1/4%u201d56-1/2%u201d1-1/4%u201d14-5/8%u201d60%u201d56-3/8%u201d50-7/8%u201dControl End Wall Back Wall Head End WallHighShelfMiddleShelfAccessory LedgeLowShelfStyleLineMini-HeadrestStyle Line2-1/2%u201d Dia. Overflow2%u201d Dia. Drain1-1/4%u201dB AE CD Drain ClearanceControlArea1-13/16%u201d Enclosure Size:56-3/8%u201dw (max) x 56-1/2%u201dh (max)Std Unit ABF UnitA 73-3/4%u201d 75%u201dB 72-1/2%u201d 73-3/4%u201dC 16%u201d 17-1/4%u201dD 1-3/4%u201d 3%u201dE 13-3/4%u201d 15%u201dF - -TS-6032ROrder No.:%u0009TS-6032R (RH drain / 16%u201d apron)%u0009 %u0009 TS-6032R ABF (RH drain / 17-1/4%u201d apron)TS-6032L (LH drain / 16%u201d apron)%u0009 %u0009 TS-6032L ABF (LH drain / 17-1/4%u201d apron)60%u201d x 32%u201d, one-piece gelcoated fiberglass tub/shower with 16%u201d apron (1-3/4%u201d drain clearance), multi-level back wall shelves anddrain on end indicated.Sump Dimensions: 47-1/2%u201d long x 20-1/4%u201d wide x 13-1/2%u201d deepSump Capacity:%u0009 38 gal. (unoccupied - to overflow)Whirlpool Operating: 28 gal.VURSA SERIES TUB / SHOWER Order Code / DescriptionVHS: Villa Hydrotherapy System: All white components including, (8) Slimline micro jets, pneumatic system control, and 7.50 amp pump.Options Order Code / DescriptionILH: In-Line Heater (factory installed)SHWR ROD-TS SS Shower Rod (factory installed)SSD: SS Recessed Soap Dish (factory installed)CRT-TS White, Ringless CurtainMP/B: Alternate Pump Location (site installed)Villa Hydrotherapy SystemJets FootJetsSystem Control SuctionStd.PumpPosition%u00ae 18
