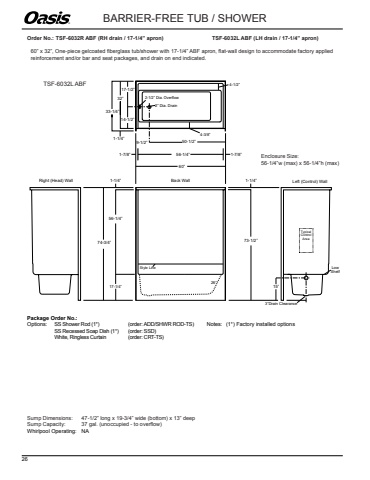

Order No.:%u0009TSF-6032R ABF (RH drain / 17-1/4%u201d apron)%u0009 %u0009 TSF-6032L ABF (LH drain / 17-1/4%u201d apron)60%u201d x 32%u201d, One-piece gelcoated fiberglass tub/shower with 17-1/4%u201d ABF apron, flat-wall design to accommodate factory appliedreinforcement and/or bar and seat packages, and drain on end indicated.BARRIER-FREE TUB / SHOWEREnclosure Size:56-1/4%u201dw (max) x 56-1/4%u201dh (max)TSF-6032L ABFSump Dimensions: 47-1/2%u201d long x 19-3/4%u201d wide (bottom) x 13%u201d deepSump Capacity:%u0009 37 gal. (unoccupied - to overflow)Whirlpool Operating: NA26%u00b09-1/2%u201d17-1/2%u201d33-1/4%u201d1-1/4%u201d17-1/4%u201d56-1/4%u201d1-1/4%u201d74-3/4%u201d14-1/2%u201d60%u201d56-1/4%u201d50-1/2%u201dRight (Head) Wall Back Wall Left (Control) Wall15%u201d3%u201dDrain Clearance73-1/2%u201dLowShelf2-1/2%u201d Dia. Overflow2%u201d Dia. Drain1-1/4%u201d1-7/8%u201dStyle Line4-1/2%u201d4-3/8%u201d32%u201d1-7/8%u201dTypicalControlAreaPackage Order No.:Options: SS Shower Rod (1*) (order: ADD/SHWR ROD-TS) Notes: (1*) Factory installed optionsSS Recessed Soap Dish (1*) (order: SSD)White, Ringless Curtain (order: CRT-TS)%u00ae 26
