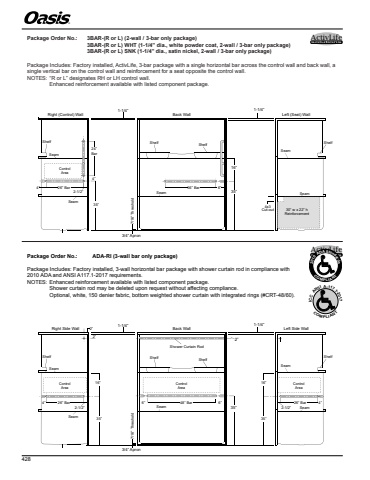

ActivLifesolutionsActivLifesolutionsPackage Order No.: 3BAR-(R or L) (2-wall / 3-bar only package) 3BAR-(R or L) WHT (1-1/4%u201d dia., white powder coat, 2-wall / 3-bar only package) 3BAR-(R or L) SNK (1-1/4%u201d dia., satin nickel, 2-wall / 3-bar only package)Package Includes: Factory installed, ActivLife, 3-bar package with a single horizontal bar across the control wall and back wall, a single vertical bar on the control wall and reinforcement for a seat opposite the control wall.NOTES: %u201cR or L%u201d designates RH or LH control wall.Enhanced reinforcement available with listed component package.Right Side Wall Back Wall1-1/4%u201d 1-1/4%u201dSeamSeamSeamSeamShelf Shelf Shelf ShelfSeamLeft Side Wall7/16%u201d Threshold3/4%u201d ApronSH3P-6334 / 3BAR-R(5/13/25 v2.0)36%u201d Bar35%u201dControlArea26%u201d Bar35%u201d2-1/2%u201dRight (Control) Wall Left (Seat) Wall%u00ae4%u201d 6%u201d24%u201dBar4%u201d16%u201d30%u201d w x 22%u201d hReinforcement4x3Cut-outPackage Order No.: ADA-RI (3-wall bar only package)Package Includes: Factory installed, 3-wall horizontal bar package with shower curtain rod in compliance with 2010 ADA and ANSI A117.1-2017 requirements.NOTES: Enhanced reinforcement available with listed component package.Shower curtain rod may be deleted upon request without affecting compliance.Optional, white, 150 denier fabric, bottom weighted shower curtain with integrated rings (#CRT-48/60).COMPLIANTCI CANSI A-117.1-2017COMPLIANT2010 ADA StandardsRight Side Wall Back Wall1-1/4%u201d 1-1/4%u201dSeamSeamSeamSeamShelf Shelf Shelf ShelfSeamLeft Side Wall7/16%u201d Threshold3/4%u201d ApronSH3P-6334 / ADA-RI(Minimal Dam Model)(2/10/23 v1.0)Shower Curtain Rod2%u201d48%u201d Bar35%u201dControlArea26%u201d Bar35%u201d2%u201d2%u201d16%u201d2-1/2%u201dRight Side Wall Left Side Wall%u00ae4%u201d 6%u201d 26%u201d Bar35%u201d16%u201d2-1/2%u201d6%u201d 4%u201dControlAreaControlArea%u00ae 428
