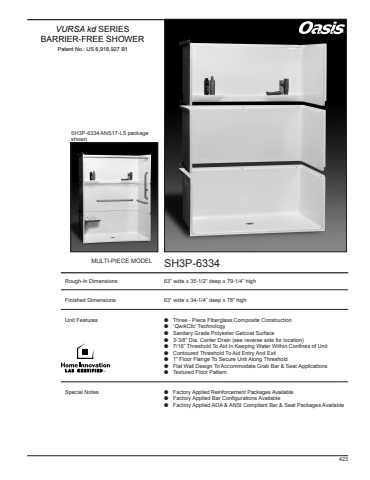

SH3P-6334 ANS17-LS package shown423MULTI-PIECE MODELRough-In DimensionsFinished DimensionsUnit FeaturesSpecial Notes63%u201d wide x 35-1/2%u201d deep x 79-1/4%u201d high63%u201d wide x 34-1/4%u201d deep x 78%u201d highl Three - Piece Fiberglass Composite Constructionl %u2018QwikClic%u2019 Technologyl Sanitary Grade Polyester Gelcoat Surfacel 3-3/8%u201d Dia. Center Drain (see reverse side for location)l%u0009 7/16%u201d Threshold To Aid In Keeping Water Within Confines of Unitl Contoured Threshold To Aid Entry And Exitl 1%u201d Floor Flange To Secure Unit Along Thresholdl Flat Wall Design To Accommodate Grab Bar & Seat Applicationsl Textured Floor Patternl Factory Applied Reinforcement Packages Availablel%u0009 Factory Applied Bar Configurations Availablel Factory Applied ADA & ANSI Compliant Bar & Seat Packages AvailableSH3P-6334VURSA kd SERIES BARRIER-FREE SHOWERPatent No.: US 8,918,927 B1%u00ae
