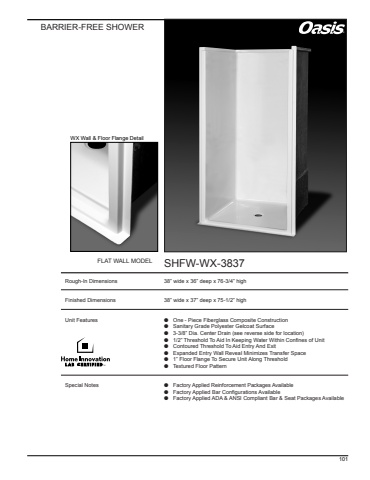

BARRIER-FREE SHOWERFLAT WALL MODELRough-In DimensionsFinished DimensionsUnit FeaturesSpecial Notes38%u201d wide x 36%u201d deep x 76-3/4%u201d high38%u201d wide x 37%u201d deep x 75-1/2%u201d highl One - Piece Fiberglass Composite Constructionl Sanitary Grade Polyester Gelcoat Surfacel 3-3/8%u201d Dia. Center Drain (see reverse side for location)l%u0009 1/2%u201d Threshold To Aid In Keeping Water Within Confines of Unitl Contoured Threshold To Aid Entry And Exitl Expanded Entry Wall Reveal Minimizes Transfer Spacel 1%u201d Floor Flange To Secure Unit Along Thresholdl Textured Floor Patternl Factory Applied Reinforcement Packages Availablel%u0009 Factory Applied Bar Configurations Availablel Factory Applied ADA & ANSI Compliant Bar & Seat Packages AvailableSHFW-WX-3837WX Wall & Floor Flange Detail101%u00ae
