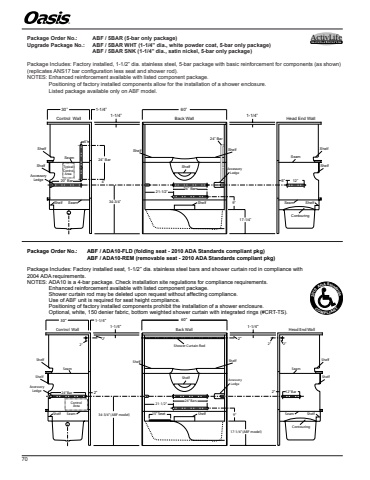

TypicalControlAreaVURSA kd SeriesModel: TS3P-6030R ABF / ADA10(ABF Model RequiredFor ADA Compliance)(2/14/2011)ControlAreaFold-Up Seat24%u201d Bars 21-1/2%u201dShower Curtain Rod9%u201d24%u201d 2%u201d 12%u201d Bar Bar2%u201d34-3/4%u201d (ABF model)2%u201d2%u201d 2%u201d 2%u201d2%u201d15%u201d Seat17-1/4%u201d (ABF model)1-1/4%u201d60%u201dControl Wall Back Wall Head End Wall1-1/4%u201dContouringShelf ShelfAccessoryLedgeShelfShelfShelf Seam ShelfSeamShelfSeamAccessoryLedgeSeamShelfShelfShelf30%u201d 1-1/4%u201dPackage Order No.:%u0009 ABF / 5BAR (5-bar only package)Upgrade Package No.:%u0009 ABF / 5BAR WHT (1-1/4%u201d dia., white powder coat, 5-bar only package)%u0009 %u0009 ABF / 5BAR SNK (1-1/4%u201d dia., satin nickel, 5-bar only package)Package Includes: Factory installed, 1-1/2%u201d dia. stainless steel, 5-bar package with basic reinforcement for components (as shown) (replicates ANS17 bar configuration less seat and shower rod).NOTES: Enhanced reinforcement available with listed component package.Positioning of factory installed components allow for the installation of a shower enclosure.Listed package available only on ABF model.TypicalControlAreaVURSA kd SeriesModel: TS3P-6030R ABF / 5BAR(6/7/24)24%u201d Bars21-1/2%u201d9%u201d20%u201d Bar 6%u201d 12%u201d 34-3/4%u201d24%u201d Bar4%u201d6%u201d24%u201d Bar17-1/4%u201d1-1/4%u201d60%u201dControl Wall Back Wall Head End Wall1-1/4%u201dContouringShelf ShelfAccessoryLedgeShelfShelfShelf Seam ShelfSeamShelfSeamAccessoryLedgeSeamShelfShelfShelf30%u201d 1-1/4%u201dPackage Order No.:%u0009 ABF / ADA10-FLD (folding seat - 2010 ADA Standards compliant pkg)%u0009 %u0009 ABF / ADA10-REM (removable seat - 2010 ADA Standards compliant pkg)Package Includes: Factory installed seat, 1-1/2%u201d dia. stainless steel bars and shower curtain rod in compliance with 2004 ADA requirements.NOTES: ADA10 is a 4-bar package. Check installation site regulations for compliance requirements. Enhanced reinforcement available with listed component package. Shower curtain rod may be deleted upon request without affecting compliance. Use of ABF unit is required for seat height compliance. Positioning of factory installed components prohibit the installation of a shower enclosure.Optional, white, 150 denier fabric, bottom weighted shower curtain with integrated rings (#CRT-TS).ActivLifesolutionsCOMPLIANT2010 ADA Standards%u00ae 70
