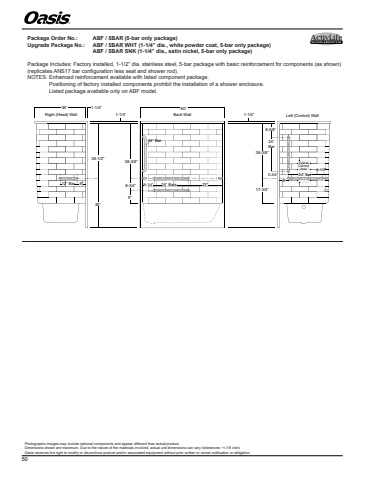

Package Order No.:%u0009 ABF / 5BAR (5-bar only package)Upgrade Package No.:%u0009 ABF / 5BAR WHT (1-1/4%u201d dia., white powder coat, 5-bar only package)%u0009 %u0009 ABF / 5BAR SNK (1-1/4%u201d dia., satin nickel, 5-bar only package)Package Includes: Factory installed, 1-1/2%u201d dia. stainless steel, 5-bar package with basic reinforcement for components (as shown) (replicates ANS17 bar configuration less seat and shower rod).NOTES: Enhanced reinforcement available with listed component package.Positioning of factory installed components prohibit the installation of a shower enclosure.Listed package available only on ABF model.ActivLifesolutionsPhotographic images may include optional components and appear different than actual product. Dimensions shown are maximum. Due to the nature of the materials involved, actual unit dimensions can vary (tolerances: +/-1/8 inch)Oasis reserves the right to modify or discontinue product and/or associated equipment without prior written or verbal notification or obligation.TST-6036L ABF(12/9/24 v1.0)Dimension Tolerances+ 0 / -1/8-inch%u00aeRight (Head) Wall 1-1/4%u201d Back Wall 1-1/4%u201d Left (Control) Wall36%u201d 1-1/4%u201d 60%u201dTypicalControlArea6%u201d17-3/4%u201d38-3/8%u201d9%u201d12%u201d Bar 8-3/4%u201d 9-1/4%u201d 24%u201d Bars 23%u201d35%u201d38-1/2%u201d6%u201d24%u201d BarTST-6036L ABF / 5BAR (12/9/24 v1.0)4-1/2%u201d38-3/8%u201d24%u201d Bar 24%u201dBar5-3/4%u201d8-5/8%u201d%u00ae 50
