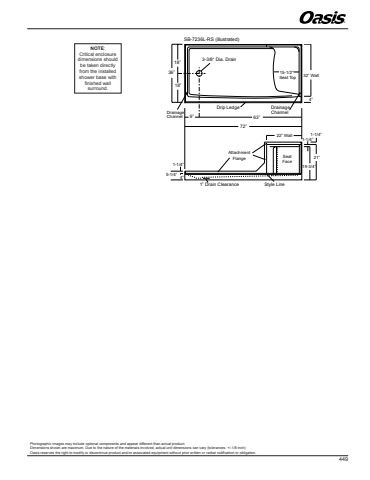

%u00ae 1-1/4%u201d36%u201d 18%u201d 18%u201d 72%u201d9%u201dDrip Ledge3-3/8%u201c Dia. Drain1%u201d Drain Clearance Style LineDrainageChannel 63%u201dSeat TopSeatFace1-1/4%u201d21%u201dDrainageChannel1-1/4%u201d4%u201d 5-1/4%u201dAttachmentFlange19-3/4%u201d15-1/2%u201d32%u201d Wall4%u201d22%u201d WallSB-7236L-RS (illustrated)NOTE: Critical enclosure dimensions should be taken directly from the installed shower base with finished wallsurround.449Photographic images may include optional components and appear different than actual product. Dimensions shown are maximum. Due to the nature of the materials involved, actual unit dimensions can vary (tolerances: +/-1/8 inch)Oasis reserves the right to modify or discontinue product and/or associated equipment without prior written or verbal notification or obligation.
