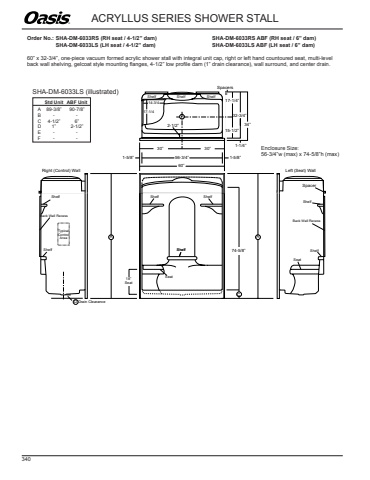

17-1/414-3/4Typical ControlArea1-5/8%u201d32-3/4%u201d1-1/4%u201d1-5/8%u201d15-1/2%u201d17-1/4%u201d34%u201d60%u201d30%u201d56-3/4%u201dRight (Control) Wall Left (Seat) WallShelfShelfBack Wall RecessShelf ShelfShelfShelfBack Wall Recess30%u201d74-5/8%u201d Shelf SpacersShelfDrain Clearance18%u201dSeatACDASeatSeat Spacer17-1/414-3/4Shelf Shelf Shelf2-1/2%u201dSHA-DM-6033LS (illustrated)Std Unit ABF UnitA 89-3/8%u201d 90-7/8%u201dB - -C 4-1/2%u201d 6%u201dD 1%u201d 2-1/2%u201dE - -F - -Enclosure Size:56-3/4%u201dw (max) x 74-5/8%u201dh (max)Order No.: SHA-DM-6033RS (RH seat / 4-1/2%u201d dam) SHA-DM-6033RS ABF (RH seat / 6%u201d dam) SHA-DM-6033LS (LH seat / 4-1/2%u201d dam) SHA-DM-6033LS ABF (LH seat / 6%u201d dam)60%u201d x 32-3/4%u201d, one-piece vacuum formed acrylic shower stall with integral unit cap, right or left hand countoured seat, multi-level back wall shelving, gelcoat style mounting flanges, 4-1/2%u201d low profile dam (1%u201d drain clearance), wall surround, and center drain.%u00ae ACRYLLUS SERIES SHOWER STALL340
