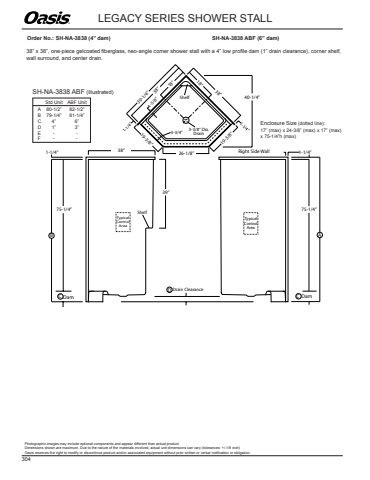

Enclosure Size (dotted line):17%u201d (max) x 24-3/8%u201d (max) x 17%u201d (max)x 75-1/4%u201dh (max)LEGACY SERIES SHOWER STALLOrder No.:%u0009SH-NA-3838 (4%u201d dam)%u0009 %u0009 SH-NA-3838 ABF (6%u201d dam)38%u201d x 38%u201d, one-piece gelcoated fiberglass, neo-angle corner shower stall with a 4%u201d low profile dam (1%u201d drain clearance), corner shelf,wall surround, and center drain.TypicalControlAreaTypicalControlAreaShelfLeft Side Wall3-3/8%u201c Dia.Drain38%u201d3-3/4%u201d18%u201d18%u201d19-3/8%u201d38%u201d26-1/8%u201d40-1/4%u201d19-3/8%u201d1-1/4%u201d1-1/4%u201d1-1/4%u201d75-1/4%u201dRight Side Wall75-1/4%u201d1-1/4%u201d39-1/4%u201d39%u201d38%u201dShelf 1-5/8%u201dD Drain ClearanceC DamB AC DamStd Unit ABF UnitA 80-1/2%u201d 82-1/2%u201dB 79-1/4%u201d 81-1/4%u201dC 4%u201d 6%u201dD 1%u201d 3%u201dE - -F - -SH-NA-3838 ABF (illustrated)%u00ae 304Photographic images may include optional components and appear different than actual product. Dimensions shown are maximum. Due to the nature of the materials involved, actual unit dimensions can vary (tolerances: +/-1/8 inch)Oasis reserves the right to modify or discontinue product and/or associated equipment without prior written or verbal notification or obligation.
