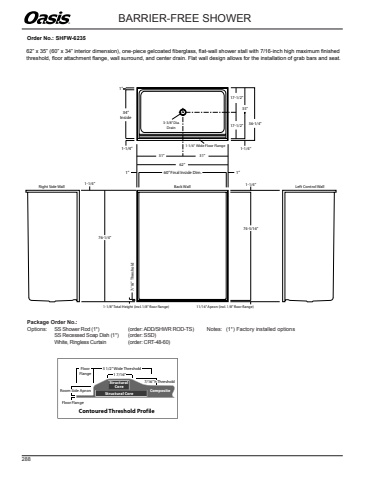

BARRIER-FREE SHOWERFloorFlange3 1/2%u201c Wide Threshold7/16%u201d h ThresholdRoom Side Apron Structural CoreStructural Core Composite Floor Flange Contoured Threshold Profile 1 7/16%u201dOrder No.: SHFW-6235 62%u201d x 35%u201d (60%u201d x 34%u201d interior dimension), one-piece gelcoated fiberglass, flat-wall shower stall with 7/16-inch high maximum finishedthreshold, floor attachment flange, wall surround, and center drain. Flat wall design allows for the installation of grab bars and seat.Dimension Tolerances+ 0 / -3/8-inch%u00ae76-1/4%u201d34%u201dInside1-1/4%u201d 1%u201d17-1/2%u201d35%u201d36-1/4%u201d1-1/4%u201d1-1/8%u201d Total Height (incl. 1/8%u201d floor flange) 11/16%u201d Apron (incl. 1/8%u201d floor flange)74-5/16%u201d1-1/4%u201d 1-1/4%u201d17-1/2%u201d1-1/4%u201c Wide Floor Flange62%u201d60%u201dFinal Inside Dim.31%u201dRight Side Wall Back Wall Left Control Wall31%u201d3-3/8%u201d Dia.DrainSHFW-623511/1/16 v2 .01%u201d 1%u201d 7/16%u201d ThresholdPackage Order No.:Options: SS Shower Rod (1*) (order: ADD/SHWR ROD-TS) Notes: (1*) Factory installed optionsSS Recessed Soap Dish (1*) (order: SSD)White, Ringless Curtain (order: CRT-48-60)%u00ae 288
