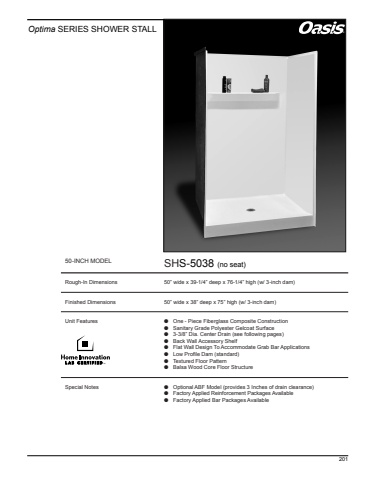

                                    Rough-In DimensionsFinished DimensionsUnit FeaturesSpecial Notes50%u201d wide x 39-1/4%u201d deep x 76-1/4%u201d high (w/ 3-inch dam)50%u201d wide x 38%u201d deep x 75%u201d high (w/ 3-inch dam)l One - Piece Fiberglass Composite Constructionl Sanitary Grade Polyester Gelcoat Surfacel 3-3/8%u201d Dia. Center Drain (see following pages)l Back Wall Accessory Shelfl Flat Wall Design To Accommodate Grab Bar Applicationsl%u0009 Low Profile Dam (standard)l Textured Floor Patternl Balsa Wood Core Floor Structurel Optional ABF Model (provides 3 Inches of drain clearance)l Factory Applied Reinforcement Packages Availablel Factory Applied Bar Packages Available50-INCH MODEL SHS-5038 (no seat)Optima SERIES SHOWER STALL201%u00ae
