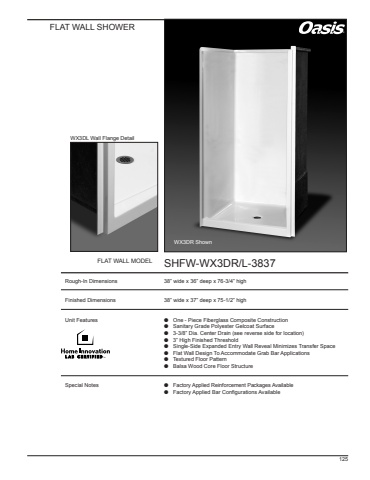

WX3DL Wall Flange DetailFLAT WALL SHOWERFLAT WALL MODELRough-In DimensionsFinished DimensionsUnit FeaturesSpecial Notes38%u201d wide x 36%u201d deep x 76-3/4%u201d high38%u201d wide x 37%u201d deep x 75-1/2%u201d highl One - Piece Fiberglass Composite Constructionl Sanitary Grade Polyester Gelcoat Surfacel 3-3/8%u201d Dia. Center Drain (see reverse side for location)l 3%u201d High Finished Thresholdl Single-Side Expanded Entry Wall Reveal Minimizes Transfer Spacel Flat Wall Design To Accommodate Grab Bar Applicationsl Textured Floor Patternl Balsa Wood Core Floor Structurel Factory Applied Reinforcement Packages Availablel%u0009 Factory Applied Bar Configurations AvailableSHFW-WX3DR/L-3837WX3DR Shown125%u00ae
