Colors Available
Additional colors available. Contact your Oasis provider for additional color options. Colors shown are not exact and for reference only.

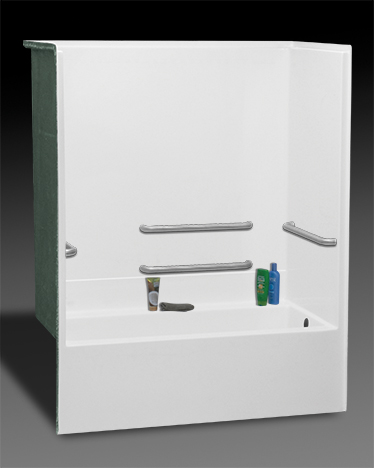

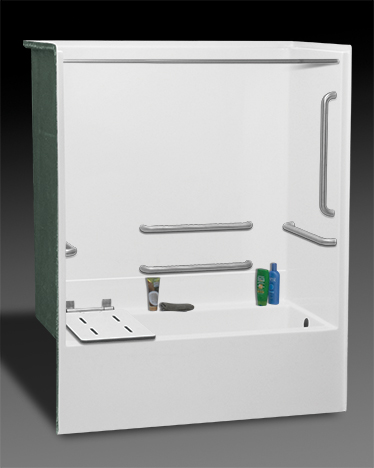

TSF-6030 ABF / BP2-60 Tub-Shower
60.0" x 30.0", one-piece, sanitary grade gelcoat, fiberglass composite, rntub/shower with 17.25" (ABF) apron, flat wall design to accommodate grabrn bars, and drain on end indicated
Dimensions
Size: 60" x 30" x 73.5"
Specifications
-.50 inch Balsa wood core floor structure
-Textured floor pattern
-Factory-installed reinforcement packages available
-Factory-installed bar packages available
-Factory-installed compliant bar and seat packages available
Sump Bottom Dimension: 47.5" long x 19.125" wide x 13.0" deep
Sump Capacity: 36 gal (unoccupied - to overflow)
BP2-60 Package Features
-ActivLife package includes three (3), 1.50 inch dia. stainless steel or 1.25 inch dia. powder coated grab bars
-Reinforced walls for package components
Model Documents
Unit/Package
Specs
Installation & Warranty
AutoCAD ABF (Above Floor)
Revit ABF (Above Floor)
More Configurations / Packages
Always build on BEDROCK!
Everyone understands the stability of bedrock. At Oasis this principle is exhibited in our "Bedrock Solid" floor system. Those annoying creaks and flex points experienced with other composite floors are eliminated with our composite encased BALSAWOOD core.
"V" Is For Versatile
The Oasis VURSA family is the only bathware collection that provides true versatility. Our ample storage and creature comforts, coupled with extensive adaptability within a single design, go well beyond any competitor. Check out VURSA and VURSAkd for yourself.
Let’s Get Technical
Oasis wants you to get exactly what you need. That's why we offer an extensive library of individual products and package submittals in various electronic formats. Simply select the model and package configuration you need, and chose from PDF, CAD or BIMM/Revit files.
